Festo demonstrates bioreactor for large-scale photosynthesis of algae

Festo presented the PhotoBionicCell research project at the Hannover Fair – a bioreactor that enables the efficient and large-scale photosynthesis of algae.

Algae are small climate savers. Even in their natural state they are extremely efficient photosynthesizers and absorb ten times more carbon dioxide (CO) than land plants. In bioreactors equipped with appropriate sensors, control technology and automation, the efficiency of algae can be increased to one hundred times that of land plants.

This shows that they have significant potential for a climate-neutral circular economy. Festo’s PhotoBionicCell research project demonstrates a potential approach for the industrialisation of algae cultivation of tomorrow.

“Our world is changing at an unprecedented rate. World population is growing and the consequences of climate change are already being felt,” says Dr Elias Knubben, vice president of corporate research and innovation at Festo. “We will have a liveable future only if people, animals and the plant world live in harmony. This is why at Festo we consider the bioeconomy to be the economic system of the future.

“Our aim is to make a significant contribution to improving the quality of life for current and future generations through the large-scale cultivation of biomass using our automatic technology.”

Biology as inspiration

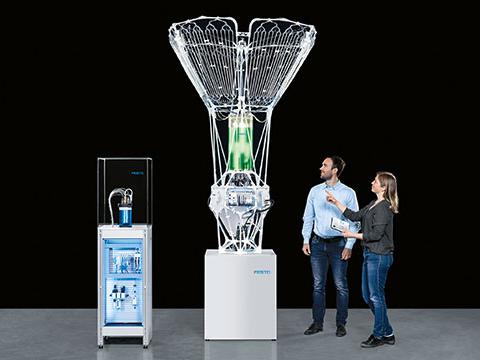

The PhotoBionicCell features an innovative photobioreactor, where algae can be automatically cultivated, and their growth controlled. The algae cells, through photosynthesis in their chloroplasts, convert sunlight, carbon dioxide and water into oxygen and chemical energy carriers or organic recyclable materials. With automation technology from Festo – for example for optimal gassing and mixing – algae can absorb one hundred times more carbon dioxide than land plants such as trees or maize.

As part of their metabolic processes, algae produce fatty acids, colour pigments and surfactants. These can be used as the raw materials for the production of medicines, food, plastics or cosmetics. Unlike petroleum-based products, the biobased end products can usually be biodegraded and, in keeping with an overall circular economy, always recycled in a climate-neutral manner.

For example, the production of a shampoo container requires about one litre of petroleum. If the shampoo bottle is incinerated after use, it releases an additional three kilogrammes of CO and thus has a negative CO balance. If bio-plastic based on algae is used instead, three kilogrammes of CO are absorbed, which are released again when the bottle is disposed of. Thus, the cycle is in balance.

Efficient photosynthesis

The researchers focused on the cultivation of the blue-green algae Synechocystis, which produces colour pigments, omega-3 fatty acids and polyhydroxybutyrate (PHB). When this PHB has been extracted, it can be processed by adding other substances, and used for example in 3D printing.

A major challenge for bioreactors is how to precisely determine the volume of biomass. Festo relies on a quantum technology sensor supplied by the start-up Q.ANT to do this. It returns accurate information on the growth of the organisms in real time. Using microfluidics such as pumps to precisely control minute volumes of liquid, the algae are automatically and continuously monitored by the quantum sensor.

The quantum sensor can optically analyse individual cells so that the amount of biomass can be precisely determined. In addition, it uses artificial intelligence (AI) to examine the cells for their vitality. Only then is it possible to anticipate and react to process events and to intervene in a controlled way.

The digitalised laboratory

Many laboratory analyses have been done manually up to now. This is slow and can result in errors. The automation of such laboratory systems in the future will enable all required data to be read directly and in real time.

To achieve this, in-house developed software is used for the PhotoBionicCell. The dashboard allows multiple photobioreactors to be displayed with the current data situation and live images. Changes to parameters and the corresponding evaluations can be made around the clock and even remotely. Users can thus respond to changes in the bioreactor at any time and, for example, start harvesting the product at the optimum time.

The developers at Festo are also using AI to evaluate the data. This allows the bioreactor to be optimised for propagation of the algae cultures or to maintain specified growth parameters with minimal energy input.
