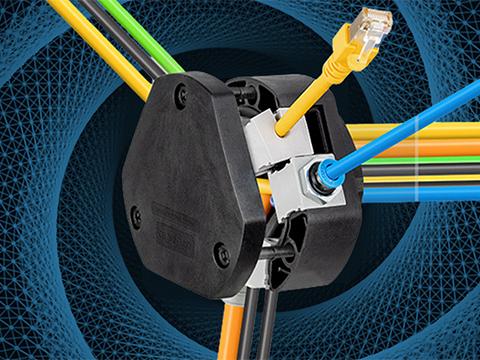

Icotek Cable Entry 360° now available from Foremost Electronics

Foremost Electronics announces the availability of the latest addition to Icotek’s range of cable entry plates. The new Icotek Cable Entry 360° can accommodate up to 48 cables, with or without connectors, from all entry directions.

This completely splitable distribution box safely routes cables and provides strain relief. It allows centrally located cables to be distributed over a 360° range and offers nearly unlimited uses. Cables with diameters from 1-15mm can be routed, sealed and provided with strain relief in accordance with DIN EN 6244.

The distribution box is suitable for metric cut-outs and can be fixed with a locknut, included with the device. Retrofits, maintenance and repairs are simple and fast to effect due to a screw fixed cover and split grommets.

The Icotek Cable Entry 360° is constructed from UL94-V0 self-extinguishing polyamide (PA), rated to IP54 and halogen and silicone free. It has a mounting height of 39.4mm and operating temperature range of -40°C to 140°C (static).
