Increased flexibility for gas strut installation

Increased flexibility for gas strut installation

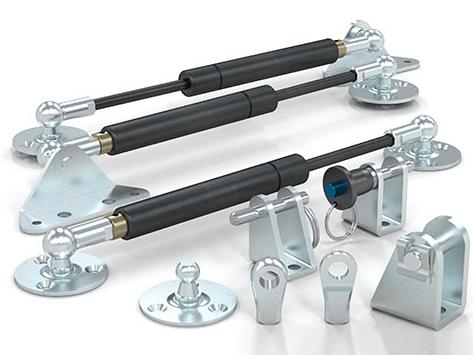

WDS has expanded its range of gas strut mounting brackets and end fittings, giving greater installation flexibility for machine and equipment builders as well as end users.

Gas struts can be utilised to actuate and support a variety of loads, from cabinet doors to machine covers and vehicle hatches. Adding to its gas strut range, the UK-based manufacturer and supplier of standard parts and components now presents a variety of circular and clevis fork brackets, as well as a wide array of gas strut end eyelets.

A new circular gas strut bracket enables installation in space-restricted areas, making them ideal for use in applications including automotive, industrial machinery, trunks, toolboxes, and furniture. Designed to suit 10 mm angle joint balls and 4 mm screws, countersunk screw holes remove the potential of catching fingers or material. Protrusion-free screw installation also makes them an ideal aesthetic choice for use in locations such as kitchens. The bracket is supplied in zinc-plated steel, giving durability and resistance to corrosion.

WDS’ full range of gas strut mounting brackets with a ball fitting stud also includes flat mounting angle, folded internal facing mount, and external facing folded mount designs, available with 10 mm or 13 mm ball fittings. Fittings manufactured from 316 stainless steel are also available for extended durability and corrosion resistance.

Meanwhile, WDS has also released a new range of clevis fork brackets, enabling gas struts to connect, push, or hold a load with a clevis fitting, typically used for a stronger linkage. This makes them ideal for applications in automation, agriculture, construction, and material handling systems. Available in 2 sizes, there are 54 types of brackets in total, covering a wide range of fixing mechanisms, offering different levels of security and ease of connection. Zinc-plated steel construction enhances resistance to corrosion.

The new brackets and eyelets are available individually or can be supplied with WDS’ wide range of gas struts. These are available with adjustable force, enabling the user to set the level of support according to need. The full range of gas struts, brackets, and eyelets, is available on, including stock information. Most of the parts are available for high volume, same day shipping, ideal for OEM procurement, although items are also available individually. To enhance ease of design integration, all parts include free to download CAD diagrams available in a variety of formats.

WDS Components Ltd

Richardshaw Road
Grangefield Ind Estate
LS28 6LE

0113 290 9852
