Power modules deliver higher density in a small form factor

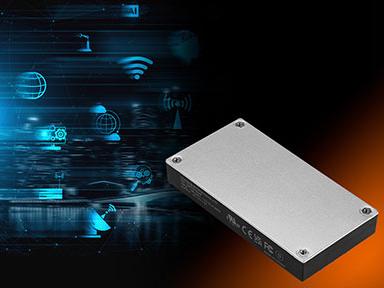

Cincon’s series of high efficiency, high density full brick, fanless AC-DC power modules, the CBM101S, is now available from Relec Electronics. They have a profile height of 17mm.

The fanless power supplies have continuous short-circuit, over-voltage and over-temperature protection. As a result, they are said to be ideal for a range of space-constrained industrial applications, including automation equipment, test and measurement instrumentation, telecom and network devices.

The full brick AC-DC power supplies have a universal input range from 90 to 264V AC with outputs of 12, 24, 28, 36 or 48V. The 100W AC-DC power supplies are capable of 100W (peak power is 120W for five seconds). In-rush current is below 8.5A, with a low leakage current of 0.25mA and no-load input power consumption is less than 0.5W. Efficiency is up to 94.5%.

Despite its size, the CBM101S integrates EMI filters, bulk capacitors and output capacitors, meaning that no external components are required to pass EMI class This contributes to the small form factor and reduces the bill of materials.

Ambient temperature range is -40°C to +85°C and the modules have an operating altitude of 5,000m. The CBM101S is UL / CE EN62368-1, EN55032 and CISPR/FCC Class B -approved and certified for Class I operation.
