Precision switching power miniature relays are tiny but mighty

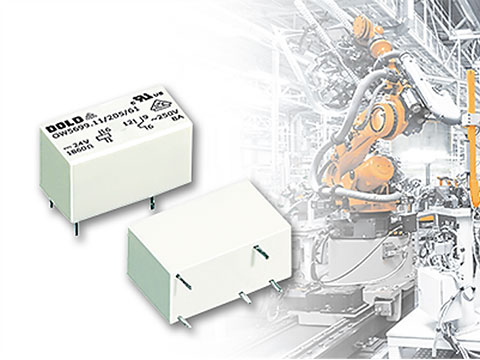

Despite their small dimensions of just 20.2 x 10.1 x 12.15 mm, the OW 5691 and OW 5699 relays pack a punch. They effortlessly manage switching and continuous currents up to 8 A, making them perfect for space-constrained applications without sacrificing power.

Known for their wash-tight construction, the miniature relays under the DILAIS brand feature a wide operating voltage range and customisable contact materials and designs. Choose from Silver Nickel (AgNi), Silver Tin Oxide (AgSnO2), and Hard Gold plating, along with normally open or changeover contacts, to perfectly match your specific application requirements.

These relays are designed for conventional through-hole mounting (THT), and their DIL design allows them to fit into standard 16-pin IC sockets. This makes installation straightforward and flexible, saving you time and effort.

Featuring a high dielectric strength of better than 4 kV between coil and contact, these relays ensure safety and reliability. With an economical power consumption of max. 250 mW, they are energy-efficient and cost-effective. Plus, with VDE and cRUus approvals, you can trust in their quality and compliance with international standards.
